Scmh1200 600

SCMH1200

12 Channel Digital Dimming Controller

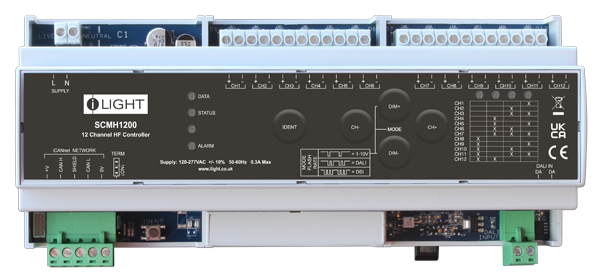

This SCMH1200 is a DINrail mount 12 channel digital dimming controller. Each channel may be configured to provide Broadcast DALI, DSI or 1-10V control.

With iLight network connectivity, it has the capability of being linked with a virtually limitless number of other iLight products to build up to any size of system.

  • iCANnet and DALI line compatible
  • 1-10V, 0-10V, DSI and Broadcast DALI outputs
  • Dimensions: 212 x 90 x 58mm (L x W x H)
  • Weight: 0.35Kg

See our full DALI range.

  • 12NC: 912600000456



Features

  • 12 channel device
  • Broadcast DALI, DSI or 1-10V control
  • 128 scene memory
  • Connects to the iLight network via screw terminals
  • Fail to full safety feature
  • iLight iCANnetTM network inputs
  • DALI in (12 address DALI end device)
  • Future proof with FLASH memory
  • CE compliant to all relevant standards
  • Designed and manufactured to IS09001:2015 standards
