Source Controllers

Offering unrivalled choice of control with a substantial range of options enabling the specifier and installer to build up any size of system in virtually any combination. All products are future proof due to their software-based structure and upgradeable firmware.

Fixed Format

The iLight range of convection cooled source controllers may be configured for a wide variety of breaker and load types making them one of the most versatile and flexible control solutions on the market today.

Custom Controllers

From a single room solution to the largest office campus, hospitality project or even a complete airport, iLight have a proven track record for delivering customised panels for projects of all scales and complexities.

DINrail Modules

Utilising our in-house design, manufacturing and testing facilities, DINrail modules may be combined with an extensive range of enclosures, switch gear and control modules to deliver a complete, ready to install panel solution.

Fixed Format Controllers

Our extensive experience in architectural lighting controls has enabled us to incorporate a wealth of small, detailed features that collectively make the best all round source controllers available today.

Available options include:
S - Single Pole
N - Neutral Disconnect
D - Double Pole
RCBO - RCBO Breakers
RCBOX - Field fitting of RCBOs

Inductive Source Controllers
Dim resistive, inductive and low voltage electronic transformer loads (that are compatible with leading edge dimmers).

Adaptive Source Controllers
Controller outputs can be adapted to resistive, inductive and capacitive load types. Very quiet operation. Complete with iProtect lamp protection and auto short circuit protection. Channels may be selected for leading and trailing edge operation.

LED Source Controllers
Dim resistive and electronic loads (trailing edge). Very quiet operation. Complete with iProtect lamp protection and auto short circuit protection.

Digital Dimming Controllers
Suitable for Broadcast DALI, DSI or 1-10 volt control configurable from iCANsoft. 230V switched relay outputs.

Switched Relay Controllers
Switching of resistive, inductive or capacitive lighting load, and very quiet in operation.

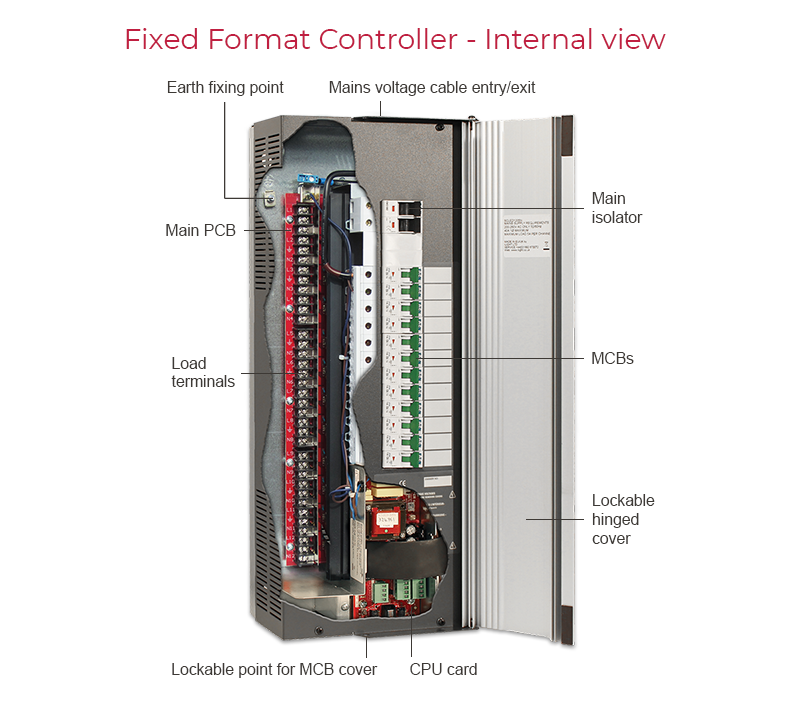

Scled Cutaway Image Door 800px

General Features

  • Choice of loads for high frequency ballasts, resistive, inductive, capacitive and switched loads
  • Choice of 4, 8 or 12 channel units to match size of installation required
  • Low noise for standard dimmers or silent operation for trailing edge & adaptive dimmers
  • 128 Scene memory and fully configurable personality
  • Fade rates of 0.1 to 60 minutes per scene
  • RJ12 programming point
  • iLight network port with loop in, loop out terminals for CAT5 cable
  • Audio Visual (RS485) port
  • Optional DMX input
  • Auxiliary over-ride port
  • CE compliant

Custom Controllers

Complete Panel Solutions

iLight panel solutions offer the ultimate in complete project flexibility with peace of mind. Utilising Eaton's in-house design, manufacturing and testing facilities, DINrail modules may be combined with an extensive range of Eaton enclosures, switch gear and control modules to deliver a complete, ready to install panel solution.

iLight offers a comprehensive range of module options for controlling lighting, shading and HVAC as well as integrating with AV and BMS. Multiple panels are networked to enable system wide visualisation, management and monitoring.

From a single room solution to the largest office campus, hospitality project or even a complete airport, iLight have a proven track record for delivering customised panels for projects of all scales and complexities.

Fixed Format

The iLight range of convection cooled source controllers may be configured for a wide variety of breaker and load types making them one of the most versatile and flexible control solutions on the market today.

Custom Controllers

From a single room solution to the largest office campus, hospitality project or even a complete airport, iLight have a proven track record for delivering customised panels for projects of all scales and complexities.

DINrail Modules

Utilising our in-house design, manufacturing and testing facilities, DINrail modules may be combined with an extensive range of enclosures, switch gear and control modules to deliver a complete, ready to install panel solution.
