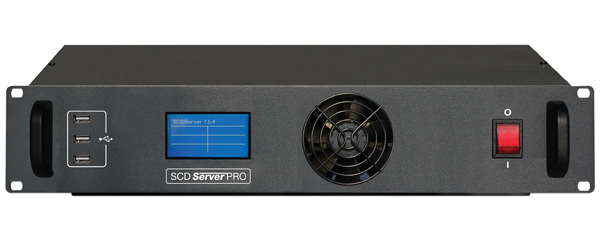

Scd Server Pro

SCD Server Pro

Tracking backup event controller & Architectural system integration

A rackmounted, fully featured, lighting control system ideal for use in larger performance installations and networks where show replay, tracking backup or standalone operation is required.

Running on ZerOS - a powerful and proven lighting control application designed for the control of all types of performance lighting including LED, intelligent moving lights, media servers, effects and traditional theatrical lighting fixtures and dimmers.

SCD Server Pro features DMX input and capture along with interfaces to MIDI, ArtNet, streaming ACN and contact closures as well as acting as an iLight iCAN network device within a distributed intelligence architectural lighting network.

Features

  • 19” Lighting Control System based upon the ZerOS operating system
  • 4096 Control channels, fully patchable to 4 DMX Universes (DMX Output via 5 Pin XLR or via Ethernet)
  • Cue Stack Sequence Playback
  • Effects engine
  • Colour, Beamshape, Position and Effect Palettes
  • Integrated colour picker (CMY, RGB and HSV)
  • Auto palettes, groups and macros
  • 4x Onboard USB ports for software updates, show backups and connection of accessories
  • XGA Monitor Output
  • Onboard fixture library
  • Support for remote control through handheld devices and remote monitors (iPhone, iPad, Android & Windows Mobile)
  • DMX 512 Input
  • 6 Channel Close Contact trigger
  • MIDI & SMPTE Timecode
  • Sound to Light Input
  • CE compliant to all relevant standards
  • Designed and manufactured to ISO9001:2015 standards

Show Replay

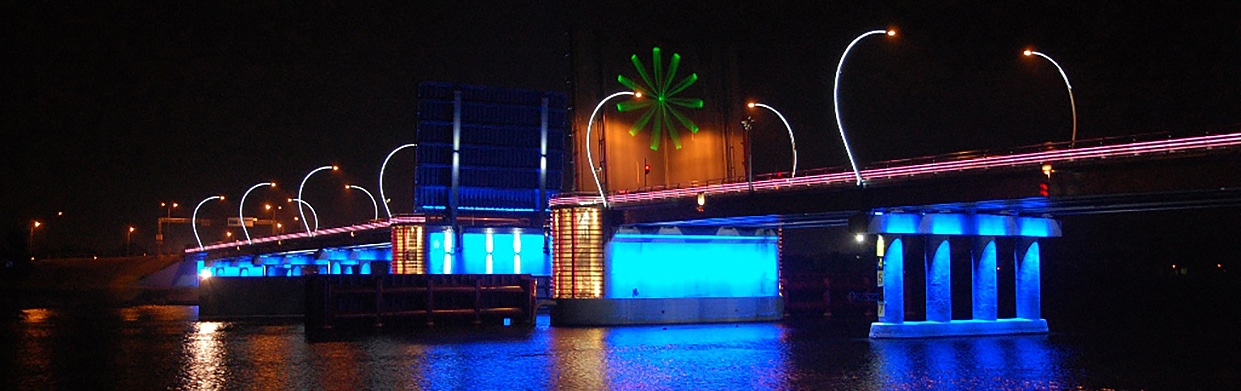

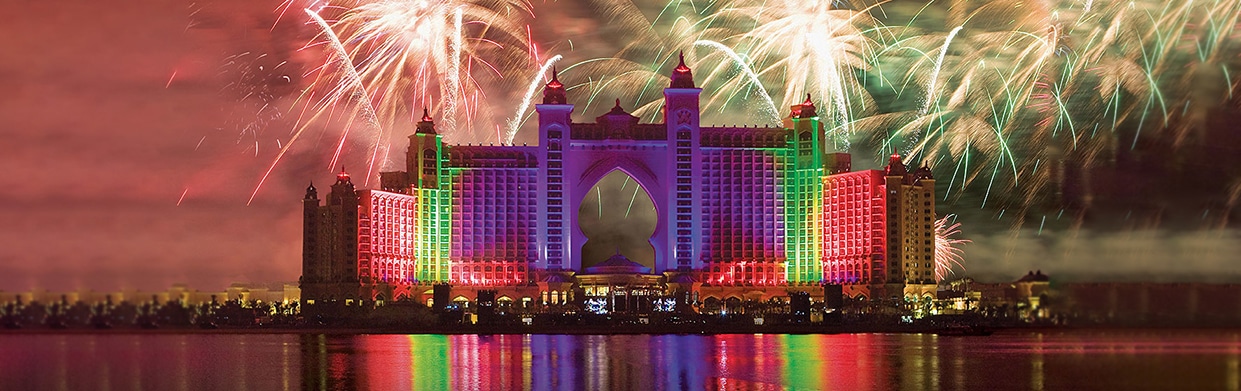

Stand alone or remotely triggered controller for permanent installations such as facades, landscapes or theme parks.

Tracking Backup

Full tracking backup and auto switch-over with Zero 88 FLX console, for any venue or event where redundancy is required.

Architectural Integration

A bridge between performance lighting and architectural lighting, ideal for theatres, conference centres and other public buildings.
