Sencia Control Panels

The Sencia range of control panels provide a combination of contemporary design with intuitive user control. They feature an array of button configurations in single or dual column. Each slim line button is LED backlit and can show a range of text and icon options to tailor each panel to a project specific requirement. A choice of coloured button inserts can be added to any button to change the illuminated colour to complete the look.

Sencia control panels are available in a variety of plate finishes to complement even the most ambitious interior designs. Panels can be installed in either standard single gang UK style electrical wall boxes or European round boxes* and can be installed in almost any location in the building on the iLight control system low voltage network.

  • Low profile design
  • Concealed fixing
  • Wide choice of finishes and configurations
  • Dimensions: 86 x 86mm

*Optional 4mm gasket for use with European Back Boxes

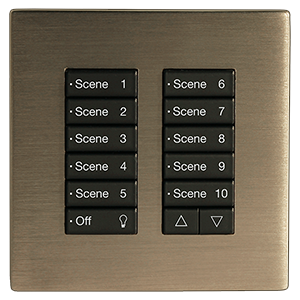

Sencia 300px


  • Single and double column button configurations
  • Available in small, medium or large buttons configurations
  • Black buttons with white backlit text
  • Custom button text and graphics available to order
  • Choice of coloured inserts to change the illumination colour
  • Available in Brushed Stainless Steel, White, Bright Chrome and Polished Brass as standard, other special finishes available to order
  • All button functions are fully programmable for single actions or controlling sequences
  • Hidden programming socket
  • Configuration stored in Non Volatile EEPROM
  • Firmware storage in reflashable FLASH memory over iCAN network
  • Configurable start up mode
  • CE compliant to all relevant standards
  • Designed and manufactured to ISO 9001:2015 standards
