PSU-15-DIN30WC
PSU-15-DIN30WC

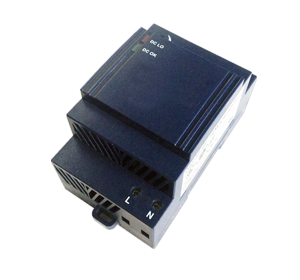

15V - 30W Power supply unit for DIN rail mounting
The PSU-15-DIN30WC is a DINrail mounted power supply with a single fixed output rating of 30W at 15V.
- 12NC: 912600000434
Electrical Data
- AC Input Voltage range: 90 - 264VAC, Class II double insulated
- Input Frequency: 47 - 63H
- DC Input Voltage range: 120 - 370VDC
- Inrush Current (115 / 230VAC): 25 / 50A
- Output Voltage Accuracy %: ±1% of Nominal
- Overcurrent Protection (Typ): 110 - 160%, fold forward under short circuit
- Overvoltage Protection V: 120 - 145%
- LED Indicators: Green LED = On, Red LED = DC Output Low
- Operating Temperature: -25 to +71°C
- Operating Humidity: 20 to 95% RH (non condensing)
- Cooling: Convection
- Immunity: EN61000-4-2, -3, -4, -5, -6, -8 & -11
- Conducted & Radiated EMI: EN55022 class A
Features
- Low 56mm Profile
- Wide Range AC input
- Full Power at 61°C
- Fits into wall mounted cabinets
- Global use with no input selector switches
- No derating needed
