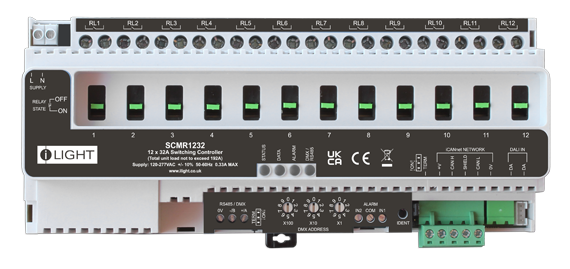

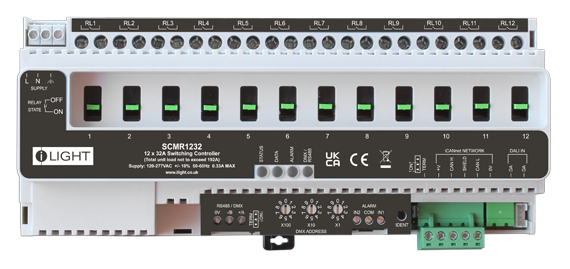

SCMR1232

12 Channel 32 Amp Feed Through Relay Controller

This 12 channel feed through relay unit provides outstanding features and performance in a truly competitive and compact package. Each channel is rated for up to 32 amps and is designed to sit on load lines to switch heavy loads of all types.

With iLight network, DMX and DALI connectivity, it has the capability of being linked with a virtually limitless number of other products to build up to any size of system. This product is designed for projects where high power switching is required including metal halide and high pressure sodium lamps as well as non-lighting loads of any voltage up to 230VAC.

  • Max total load 192A
  • iCANnet and DALI line compatible
  • Dimensions: 212 x 90 x 58mm
  • Weight: 0.8 Kilogram


See our full DALI range.

Features

  • 12 x 32 Amp feed through relays
  • Any phase on any input
  • Mounts to standard Top Hat (TS35) DINrail
  • Switches resistive, inductive and capacitive lighting loads
  • Intelligent ‘Built in’ propagation delay for switching sequence 1-12
  • Manual override of any channel
  • Integral processor
  • iLight network terminal connections
  • DALI in (12 address DALI end device)
  • RS485 / DMX512 in
  • 2 x Auxiliary Inputs
  • Configuration stored in Non Volatile EEPROM
  • Firmware storage in reflashable FLASH memory over iCAN network
  • Configurable start up mode
  • CE compliant to all relevant standards
  • Designed and manufactured to ISO9001:2015 standards
