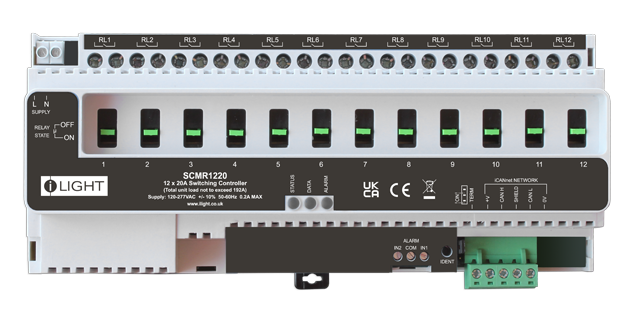

12 Channel 20 Amp Feed Through Relay Controller

The SCMR1220 is a key building block when specifying high power switching control.

This 12 channel, feed through-latching relay controller enables lighting loads up to 20A to be switched. The twelve TV8 rated relays support resistive, capacitive, and inductive lighting loads, as well as non-lighting loads of any voltage up to 230VAC.

The economical design of SCMR1220 provides a high density of channels in a small footprint, minimising the required space and cost of installation.

To ensure seamless control of higher power loads the SCMR1220 benefits from intelligent propagation delay, imperceivably staggering the switching of the outputs in sequence.

SCMR1220 also benefits from the same robust design principles as all iLight products and boasts truly distributed intelligence, inherent resilience, and independent operation.

Each channel relay is accessible from the front of the unit - test and override control is available to the installer, correct system installation can be verified prior to commissioning. Manual override of each channel can be triggered as required.

Furthermore, iLight source controllers support virtually any type of lighting load, the SCMR1220 in combination can be employed seamlessly providing flexible and scalable solutions for almost any lighting control application.

The core capabilities of an iLight solution deliver much more than lighting, empowering the user to take charge of their intelligent building systems including lighting, shading, heating, cooling, ventilation and more.

12NC: 912600000721
