The iLight brand has transitioned to Dynalite, Signify’s premier wired lighting control solution.
Dynalite has an extensive portfolio of hardware and software solutions to suit a multitude of applications, making it easy to transition your project opportunities to our latest offering.
SCA1210 adaptive dimming controller is no longer available for sale into new projects. For information on Dynalite’s comprehensive range of dimming controllers, visit: dynalite.com/product-family/dimmers

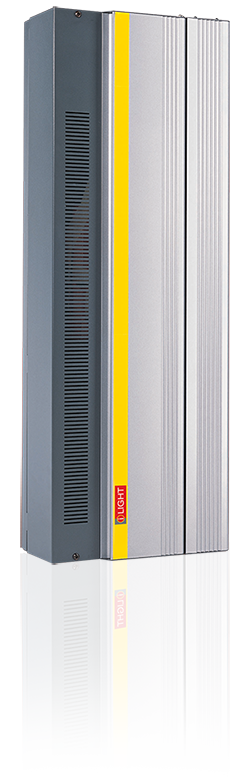

SCA1210
12 x 10 Amp adaptive source controller
This 12 x 10 Amp adaptive source controller is designed to provide scene set dimming of lighting loads that require either leading or trailing edge dimming. This FET based adaptive dimmer is suitable for resistive, inductive and capacitive loads. In the event of reactive loads being detected, it uses patented circuitry to protect both itself and the connected load. With a 128 scene integral memory this device offers multiple control options to meet the most demanding specifications.
The device is complete with dynamic voltage and current monitoring. This facility provides short circuit protection, and protects the lamps from thermal shock and so extends the lamp life. It is completely silent in operating mode when using trailing edge dimming. In addition to the iLight network connectivity, it also has an audio visual port and auxiliary, as well as a DMX512 optional input. The versatility and adaptability of this product makes it the perfect device for hotel ballrooms, museums, visitor centres, entertainment venues, and as part of large integrated systems.
- MCB protection behind lockable hinged cover
- Dimensions: 850 x 330 x 155mm
- Weight: 18 Kilograms
- 12NC: 912600000441
Features
- 12 x 10 Amp fully rated adaptive source controller module
- 128 scene memory
- Each channel can be set for leading or trailing edge dimming suitable for resistive, inductive and capacitive loads
- Complete with iProtect™ lamp protection and auto short circuit protection
- Lockable hinged door to MCBs
- Fail to full safety feature
- iLight iCAN network inputs
- Audio Visual Port (RS485)
- Optional: DMX512 input
- Panic/fire alarm input
- Configuration stored in Non Volatile EEPROM
- Firmware storage in reflashable FLASH memory over iCAN network
- CE compliant to all relevant standards
- Designed and manufactured to ISO9001:2015 standards
