SCA0410

4 x 10 Amp adaptive source controller

This 4 x 10 Amp adaptive source controller is designed to provide scene set dimming of lighting loads that require either leading or trailing edge dimming. This FET based adaptive dimmer is suitable for resistive, inductive and capacitive loads. In the event of reactive loads being detected, it uses patented circuitry to protect both itself and the connected load. With a 128 scene integral memory this device offers multiple control options to meet the most demanding specifications.

The device is complete with dynamic voltage and current monitoring. This facility provides short circuit protection, and protects the lamps from thermal shock and so extends the lamp life. It is completely silent in operating mode when using trailing edge dimming. In addition to the network connectivity, it also has an audio visual port and auxiliary, as well as a DMX512 optional input. The versatility and adaptability of this product makes it the perfect device for hotel ballrooms, museums, visitor centres, entertainment venues, and as part of large integrated systems.

  • Suitable for 40 Amp single phase supply
  • MCB protection behind lockable hinged cover
  • Dimensions: 375 x 330 x 155mm
    (RCBO & RCBOX - Consult iLight)
  • Weight: 9 Kilograms (SCA0410D - 10 Kilograms)


Input isolator not included.


Available options include:
S - Single Pole
N - Neutral Disconnect
D - Double Pole
RCBO - RCBO Breakers
RCBOX - Field fitting of RCBOs

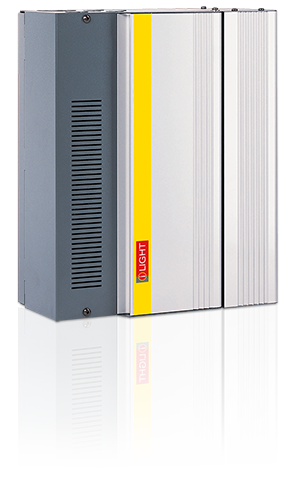

Sca0410 300px

Features

  • 4 x 10 Amp fully rated programmable and adaptive source controller module
  • 128 scene memory
  • Each channel can be set for leading or trailing edge dimming suitable for resistive, inductive and capacitive loads
  • Complete with iProtectâ„¢ lamp protection and auto short circuit protection
  • Multiple choice of circuit protection and security door to MCBs
  • Optional RCBO per channel
  • Fail to full safety feature
  • iCAN Network inputs
  • Audio Visual Port (RS485)
  • Optional: DMX512 input
  • Panic/fire alarm input
  • Configuration stored in Non Volatile EEPROM
  • Firmware storage in reflashable FLASH memory over iCAN network
  • CE compliant to all relevant standards
  • Designed and manufactured to ISO9001:2015 standards
