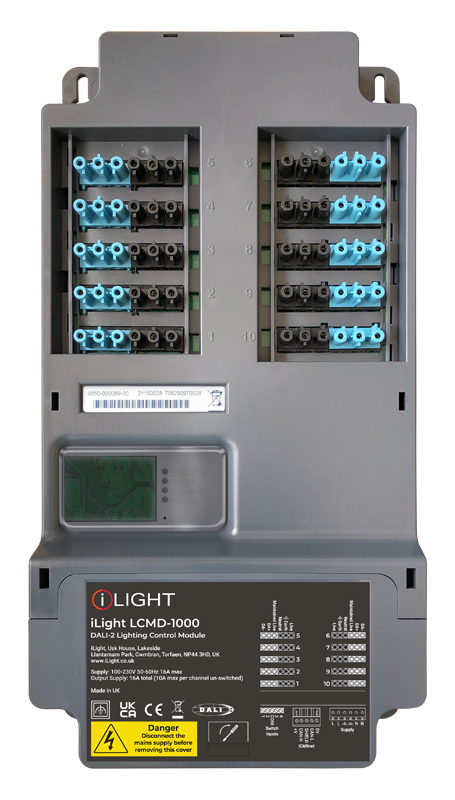

Intelligent DALI-2 pluggable lighting control module with 10 auto addressing DALI outputs. A maximum of 30 DALI luminaires (or short addresses) can be connected per LCMD-1000, distributed at will across the 10 ports. In addition, each port supports 1 DALI Emergency Luminaire, 1 DIU-4 or DALI Control Plate and 1 DALI Sensor.

DALI Luminaires, inputs, control plates and sensors are auto discovered eliminating the time consuming identification process normally associated with DALI systems.

With ‘out of the box’ functionality, LCMD-1000 auto addresses and groups the DALI devices with a default configuration as soon as power is provided. The system is then fully operational with senors and control plates, removing the need for a commissioning engineer at startup. Should a connected device require replacement, the LCMD-1000 will address the device upon connection and the system will ‘self heal’ requiring no intervention from a commissioning engineer.

While the LCMD-1000 is shipped by default as a 10 port self addressing DALI LCM, it can be configured at the point of commissioning as a single line, fully addressable DALI controller. This provides for more complex applications or where a single port needs to serve more than one group of luminaires.

DALI emergency luminaire testing is supported in addition to standard DALI faults including lamp, communication and driver failures.

The low profile design of the LCMD-1000 is ideal for low ceiling voids or mounting directly on cable tray.
