8" backlit capacitive LCD touchscreen

The TSE80 touchscreen is a flexible device which provides an intuitive “user friendly” method of interfacing to the iLight control system. The LCD capacitive screen provides virtually limitless flexibility of system configuration and control. It is completely software based, and programs can be tailored to suit the precise needs of the user. The touch screen can also be used to provide control of other integrated systems such as curtains and blinds and HVAC.

TSE80 comes with a choice of two graphical skins which can be swapped between easily at programming stage to the clients preference. The look can be further personalised by adding custom background images - From a branded hotel welcome page to a minimalist theme for a home cinema room.

TSE80 connects to the iLight network using a TSI-1 touchscreen interface.

  • Compatible with TSI-1 Touchscreen Interface
  • Dimensions: 223 x 148mm
  • 12NC: 912600000525

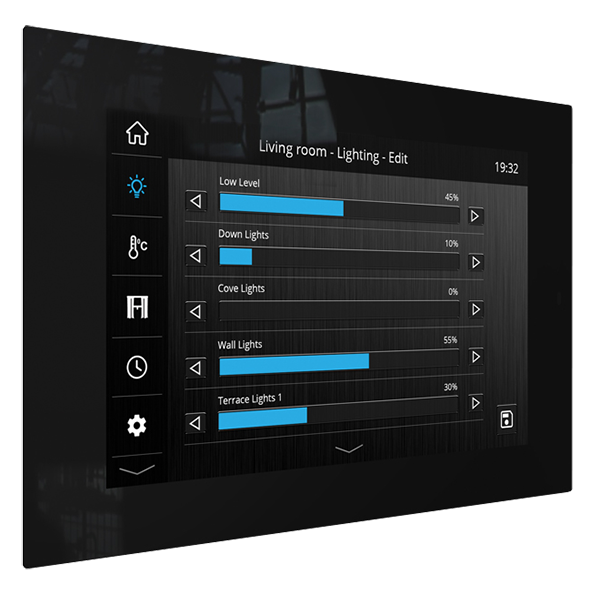

Tse80 600px


  • 8 inch (203.2mm) diagonal backlit capacitive LCD touchscreen
  • Supports multi-touch & gesture
  • 1280 X 800 pixel resolution
  • Colour Depth: 16.7M colours, 400 nits brightness
  • Fits US NEMA 2 gang back box (Ref: TSE80 Back Box)
  • All graphics and buttons can be customised
  • Password feature to allow different access levels
  • CE compliant to all relevant standards
  • Designed and manufactured to ISO9001:2015 standards
