SCS1210

12 x 10 Amp Switched Relay Source Controller

This 12 channel high powered intelligent switching unit provides outstanding features and performance at a truly competitive price. It is fully rated for 40 Amps three phrase of continuous inductive lighting load. This unit is designed for switching large lighting loads of most types. With a 128 scene integral memory this device offers multiple control options to meet the most demanding specifications.

With iLight’s iCAN network connectivity, it has the capability of being linked with a virtually limitless number of other iLight products to build up to any size of system. This product is designed for projects where there are multiple channels of Architectural lighting. It is the perfect choice for shopping malls, atria exterior lighting and industrial areas.

  • Suitable for 40 Amp 3 phase supply
  • MCB protection behind lockable hinged cover
  • Input isolator included (except 'D' version)
  • Dimensions: 550 x 220 x 155mm
    (D - 690 x 220 x 155mm. RCBO & RCBOX - 550 x 255 x 155mm)
  • Weight: 9 Kilograms (D, RCBO & RCBOX - 10.5 Kilograms)


Available options include:
S - Single Pole
N - Neutral Disconnect
D - Double Pole
RCBO - RCBO Breakers
RCBOX - Field fitting of RCBOs

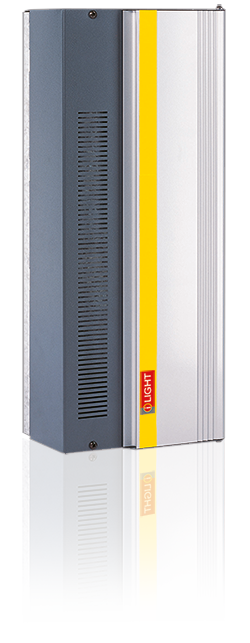

Scs1210 250px

Features

  • 12 x 10 Amp fully rated source controller
  • Switches resistive, inductive and capacitive lighting loads
  • Quiet operation
  • 128 scene memory
  • Multiple choice of circuit protection
  • Security door for MCBs
  • Optional RCBO per channel
  • Fail to full safety feature
  • iCAN network inputs
  • DMX input option
  • Audio Visual Port (RS485)
  • Panic/Fire alarm input
  • Configuration stored in Non Volatile EEPROM
  • Firmware storage in reflashable FLASH memory over iCAN network
  • CE compliant to all relevant standards
  • Designed and manufactured to ISO9001:2015 standards
