SCI0405

4 x 5 Amp inductive source controller

This 4 circuit economy source controller is fully rated for 4 x 5 Amps of continuous inductive or resistive lighting loads. Whether used for tungsten, low voltage or cold cathode light sources, this unit will provide reliable service over many years. With a 128 scene integral memory, this device offers multiple control options, to meet the most demanding specifications.

In addition to the iLight iCAN network connectivity, it also has an audio visual port, and panic/fire alarm input. It is typically used on its own in areas that need manageable and controlled light such as themed restaurants, visitor centres, art galleries, and churches, or as part of a comprehensive network in large building complexes.

  • Suitable for 20 Amp single phase supply
  • MCB protection behind lockable hinged cover
  • Dimensions: 280 x 220 x 155mm
    (D - 400 x 220 x 155mm. RCBO & RCBOX - 340 x 255 x 155mm)
  • Weight: 4 Kilograms (RCBO & RCBOX - 4.5 Kilograms)


Input isolator only included on RCBO and RCBOX versions.


Available options include:
S - Single Pole
N - Neutral Disconnect
D - Double Pole
RCBO - RCBO Breakers
RCBOX - Field fitting of RCBOs

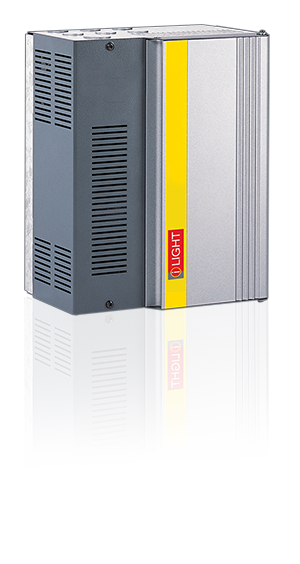

Sci0405 300px

Features

  • Optional RCBO per channel
  • Fail to full safety feature
  • Security door for MCBs
  • 4 x 5 Amp rated source controller
  • Dims resistive, inductive and low voltage electronic transformer loads (that are compatible with leading edge dimmers)
  • Quiet operation
  • 128 scene memory
  • Multiple choice of circuit protection
  • iCAN network inputs
  • DMX input option
  • Audio Visual Port (RS485)
  • Panic/Fire alarm input
  • Configuration stored in Non Volatile EEPROM
  • Firmware storage in reflashable FLASH memory over iCAN network
  • CE compliant to all relevant standards
  • Designed and manufactured to ISO9001:2015 standards
